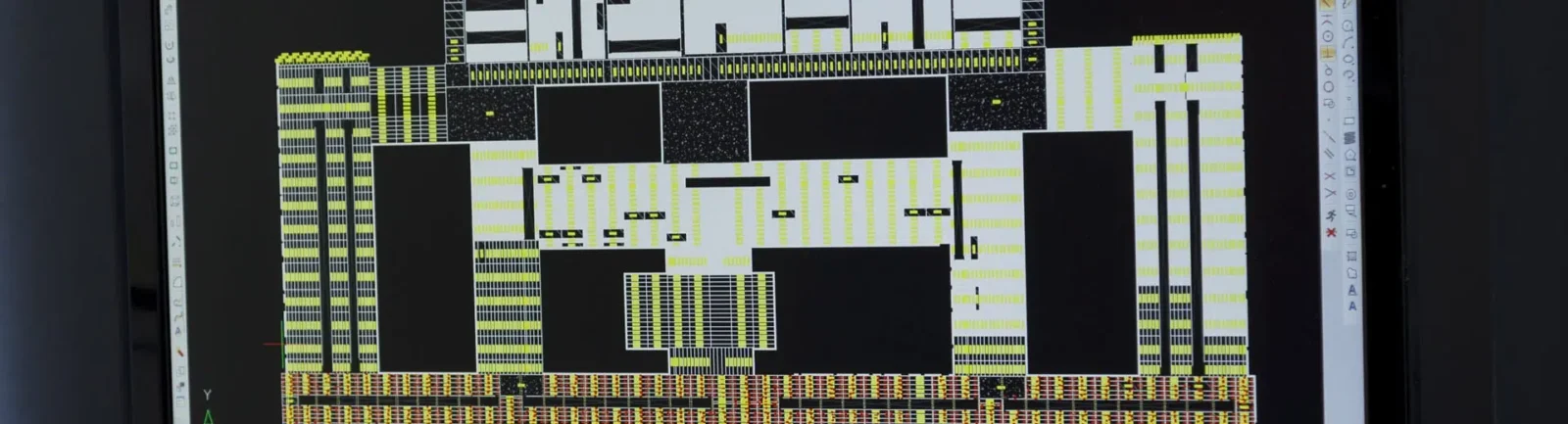

Floor Plans

We will provide you with fully connected measured floor plans as standalone drawings as part of our measured building survey service. We work with all types of projects from steel framed structures through to historic buildings.

We use a range of equipment including laser scanners, total stations and handheld digital tape measures. Detailed floor plans provide a bird’s-eye view of the entire building, highlighting all its features. This includes ceiling heights, beam locations, window and door heights, their positions and swings, sanitary fittings, structural and stud walls, and floor levels. Drawings are created for each floor level of the building.

You will receive measurements for Gross Internal Area (GIA) and Net Internal Area (NIA). Our drawings are produced in accordance with the 6th edition of the RICS code of measuring practice supplied in 2D format. We can produce 3D CAD plans or 3D Revit models if required.

Can you help if I need more than a floor plan?

Yes., Gross External Area (GEA) surveys can be included as an additional part of our services. We can also create reflected ceiling plans, ideal for refurbishments or new fit-out projects within the retail and commercial sectors. These will include the positions of light fittings, CCTV cameras, smoke detectors, air conditioning units, ceiling tiles and any other M&E equipment.

Roof plans, internal and external, can be produced in conjunction with floor plan surveys. External details will include ridges, parapets, chimney stacks and skylights. Internal details will include details ridges, parapets, chimney stacks and skylights.

How much does a floor plan cost?

We can provide you with a quote for a floor plans as standalone drawings, or these can be included within a package of services. Please send us an enquiry by filling out the form below.
